Horizontal Flow Packing Machine（Normal Type)
Packing Process:Product is placed on the in-feed conveyor. As the in-feed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a fin-seal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the end-seals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
What Is Horizontal Flow Wrapping Packing Machine?

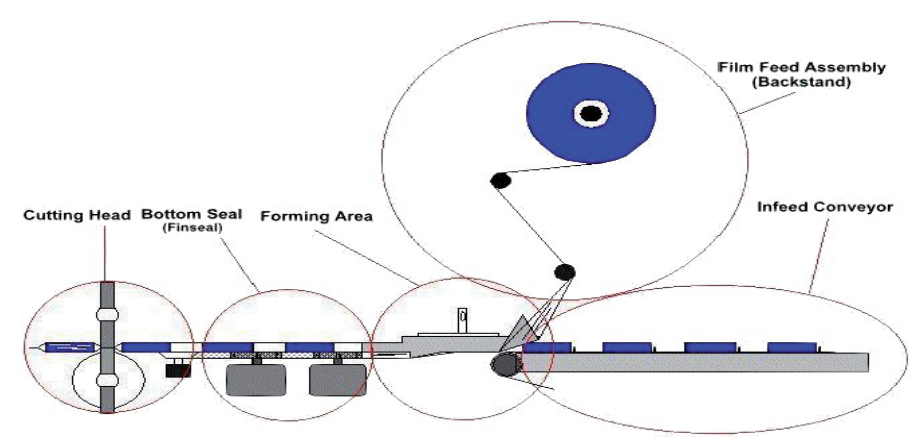

The drawing below shows a horizontal flow wrapping packing machine:
The flow wrapping packing machine packages product by wrapping it in film. The flow wrapping packing machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
Application of Horizontal Flow Wrapping Packaging Machine
It is suitable for package of washing foam, Popsicle, instant noodles, ice cream bar, moon cakes, biscuits, bread, meat food, frozen food, toilet soap, medicine tablets, plastic transfusion, incense coil, industrial products, plastic forks and knives etc.
Constituent Parts of Horizontal Flow Wrapping Packing Machine
The packing machine packages products by wrapping them in film. The packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.
Parameter of Horizontal Flow Wrapping Packing Machine
Max film width | 560mm |
Packing Sizes | L:50~500mm，W:20~200mm H:20~110mm |
Packing Speed | 30~120bags/min |
Packing material | Poly film, Aluminum foil poly film |
Power Consumption | 4.5KW Single Phase 220V |
Machine sizes | LxWxH:5700×1050mm×1700mm |
Machine weight | About 1000kg |
Features Of Flow Wrapping Packing Machine
Adopting double servo motor, PLC and touch-screen that greatly improved the control accuracy, range of speed regulation, operational reliability and intelligent level of machine.
Having automatic monitoring function. Any fault reason during operation will be self diagnosed, and showing the solution.
Packing parameter with many products could be set, the relevant data could be drawing out from memory and the machine will be operate according to these data.

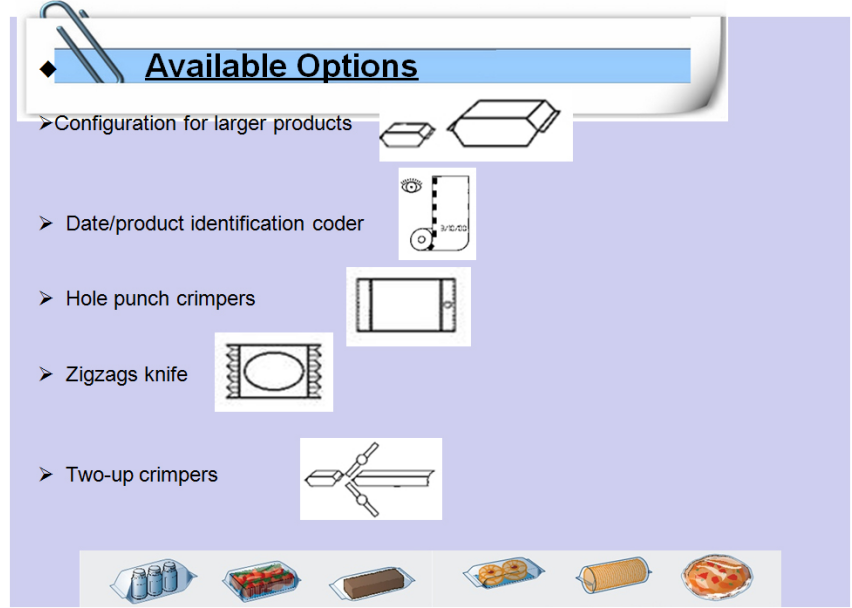

Auxiliary equipment for Flow Wrapping Packing Machine
Date code printer.
Automatic feeder.
Automatic grouping equipment.
Euro slot or round hole can be made.
